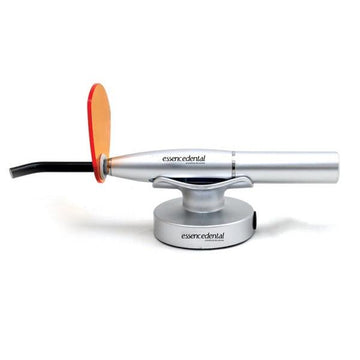

BS Diamond photopolymerizer - Essence Dental

BS Diamond Photobleaching

Code: 2962

The curing light is a piece of equipment used in dental resin curing procedures and is essential for various procedures that involve and affect the patient's oral health.

Technical Characteristics:

• Maximum output light power - ≤ 1500mw/cm²;
• Programmable from 5 to 40 seconds;
• Wavelength - 450 to 500nm;
• Protection against electric shock - Internally Energized Equipment;
• Main unit weight - ~150g;
• Main unit (applicator) dimensions - ~165 x 30mm (cylindrical);
• Loading dock dimensions - ~80mm x 80mm x 60mm;
• Operating Mode Continuous, Pulsed and Ramp Modes (definition of output settings);
• Normal operating cycle: 40s ON (regardless of MODE setting), with equipment usage intervals of 5min;
• IP protection level Power supply – IP40;
• Handpiece – IP00;
• Charger Dock–I P00;
• Power supply weight - ~0.5kg;
• About operating environment - Equipment not suitable for use in oxygen-rich environments.
• Note: The equipment has an external power supply and must be treated as part of the equipment. Do not use any power supply other than the one supplied with the equipment. If you have any questions, contact your representative.

Advantages:

• The Dental Light Curing Unit has 3 basic operating modes: PULSED mode, CONTINUOUS mode and RAMP mode, each with its own relationship and characteristics related to different procedures.
• The operating modes are accessible using the button identified with the letter “M”, and the application time for each mode can be adjusted in 5-second steps from 5 to 40s.
• The application starts by pressing the “P” key.
• Also, on the front panel there is a time indicator (2-digit display) and a battery charge indicator
• Light curing unit for resins and dental whitening
• Acrylic tip for whitening
• Operating Mode Continuous, Pulsed and Ramp Modes (output adjustment definition)
• Automatic dual voltage
• Electric Shock Protection - Internally Energized Equipment
• About operating environment - Equipment not suitable for use in oxygen-rich environments

Items Included:

• 1 Photobleach;
• 1 Charger;
• 1 charging base
• 1 Tip
• 1 Instruction manual;
• 1 Acrylic protection;
• 1 Warranty Certificate attached to the Manual.

Approximate dimensions and weights

• With factory packaging:
  Dimensions: (14.5 x 6.5 x 24.0) cm
  Weight: 342g

ANVISA Registration: 80676929003

Manufacturer: Essense Dental
