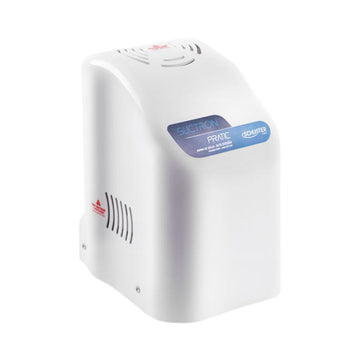

Suctron Pratic Vacuum Pump - Schuster

Suctron Pratic

Vacuum Pump with capacity for 01 office.
Designed for installation next to the dental chair without breaking the floor or requiring any adjustments. It uses the same plumbing system as the dental office, completely eliminating backflow.
High impact polystyrene cabinet.

Features

Suctron Technology
Extremely quiet. With an exclusive low-speed operation system, it provides the necessary silence for the work environment.
It has reduced dimensions, enhancing the internal space of the office.
Automatic waste discharge system directly into the sewer.
Automatic pre-wash in the collector filter.
Turbine sized for high performance.

Schuster Exclusive Scan Timer

System that when placing the suction cup on the auxiliary unit support, the suction remains for approximately 15 seconds in order to clean all the internal piping.
This device can be activated during equipment installation or later.

Other Features of Suctron Pratic
Debris collection filter at the suction inlet with top opening, avoiding contact with waste, making it practical, efficient and easy to clean.
Water inlet filter.
Motor with stainless steel central shaft.

Technical Information for this Vacuum Pump

• Dimensions with cabinet:
  Length: 27.5cm
  Width: 27cm
  Height: 35cm
• Net Weight without cabinet:
  15.10 kg
• Net Weight with cabinet:
  16.22 kg
• Gross Weight with Packaging:
  17.86 kg
• Drive command:
  Electronic
• Maximum Vacuum:
  330 mmHg/12.92 inHg
• Engine (power):
  1/3 Hp
• Engine speed (rpm):
  1755-60 Hz
• Food:
  Dual voltage 127V / 220V
• Frequency:
  60 Hz
• Current:
  3.1A(220V) / 7.9A(127V)
• Voltage at the control board:
  24 V
• Maximum air flow:
  150L/min.
• Water consumption:
  0.30L/min.

Manufacturer : Schuster
