Dental Office D702 - Dabi Atlante

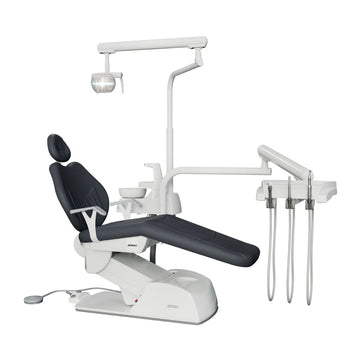

Dental Office D702

Description:
The D702 Dental Office delivers the evolution that the dentist needs, with an affordable investment. It is more comfortable, has a non-slip base (does not need to be fixed to the floor), a removable headrest and is prepared to receive up to 5 terminals. (See regulatory information below in the Anvisa tab)

Features:

Chair:

• Base with non-slip edging; no floor fixing required.

• The structure is built of solid steel, with antioxidant treatment and painted with epoxy paint, providing greater strength and durability to the assembly.

• Pneumatic lifting system made of steel sheet, offers greater resistance, lifting capacity of up to 200 kg.
• Integrated junction box optimizing space within the office.

• It features an ON/OFF button located on the side of the chair base, making it easy for the professional to access.

• Extensive upholstery available in 10 color options.

• Support arm for the fixed patient.

• Electromechanical lifting system driven by a low-voltage geared motor with 24 volts.

• Supply voltage 127 or 220V ~ 50/60Hz

• Anatomical and removable headrest

• Ambidextrous office

Pedal:

• Joystick

• Multifunctional control pedal operating chair, handpieces and spotlight.

• Automatic and synchronized elevation and tilt movements

• Customizable work positions

• "Return to zero" option to return directly to the initial position.

• Automatic shutdown of the spotlight when pressing the "return to zero" button.

• Protection of the electrical system against voltage and current fluctuations.

Team:

• Made of injected ABS: provides greater durability / corrosion resistance and color stability to the assembly.

• Articulated arms with pneumatic locking, activated by a button located under the equipment body on the side handle, providing freedom of movement.

• Progressive pedal for operating the handpieces at the equipment terminals, allowing speed control and activation at any point on the pedal.

• Triple syringe: rotating, removable, and autoclavable nozzle.

• Hoses: round, lightweight, and flexible

• Tip support: with individual pneumatic drive

• Removable stainless steel top: easy to clean, provides greater practicality and corrosion resistance.

• Bilateral Puller

• Standard:
  - 01 triple syringe
  - 01 non-spray terminal for low rotation
  - 01 terminal for high rotation

Water Unit:

• Made of injected ABS: provides greater durability / corrosion resistance and color stability to the assembly.

• Ceramic sink: deep, removable, with drain and filter to retain solids, and cover to prevent splashing.

• Debris filter located at the base of the suction unit.

• Water flow control system: allows fine adjustment of the water flow.

• Translucent 1000 ml reservoirs for: handpiece water and triple syringe

• Water unit and 90° folding basin, allowing for ample mobility that enables the assistant to approach the surgical field.

• Cup holder with proximity sensor: features a unique proximity sensor that automatically activates the water flow in the cuspidor, providing greater convenience, comfort for the patient, safety, and water conservation.

• Programmable water timer with electric actuator switch (up to 60 seconds)
  – Venturi Suction Terminal
  - Vacuum Pump Suction Terminal

Persus LED Spotlight:

• Monofocal for dental use with an optical system with 1 LED.

• Multifaceted mirror with multi-coating treatment

• Double mirror protection, made of a durable, transparent material.

• Bilateral loop-shaped handles that allow for isolation, preventing the risk of cross-contamination.

• Headstock made of durable material, with 620º rotation.

• Intensity: 8,000 to 35,000 LUX (intensity selection via pedal)

ANVISA registration:

• The D702 Dental Clinic is composed of:

• Chair: D1 – Anvisa: 10069210062

• Equipment: Syncrus G2 – Anvisa: 10069210075

• Water unit: Syncrus G2 – Anvisa: 10069210063

• Reflector: Persus Led – Anvisa: 10069210069

Manufacturer: Dabi Atlante
