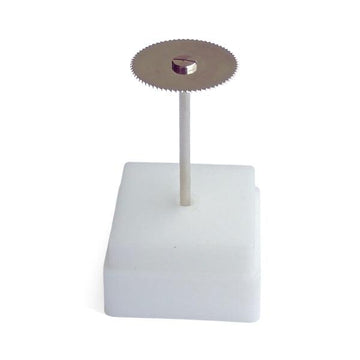

DSA Stainless Steel Serrated Disc with Mandrel - Dhpro

Stainless Steel Circular Saw Blade without Diamond DSA with Chuck | PM - For Straight Handpiece - Extra Oral

Stainless Steel Serrated Disc DSA and Mandrel - Dhpro. Extra smooth without diamond for cutting acetate, silicone and prostheses. Best solution for cutting acetate, silicone, "Flex" and "Soft" prostheses. Provides a precise and fast cut, without adhering residue, without burning, without melting any type of plastic matrix.

Faster cutting speed;
Hard Disk;
It does not stick to the acrylic substrate;
It does not burn the acrylic substrate.

Models :

DSA08 - Diameter: 0.8mm x 0.20mm, with AJMini PM Chuck
DSA10 - Diameter: 10mm x 0.20mm, with AJMini PM Chuck
DSA13 - Diameter: 13mm x 0.20mm, with AJMini PM Chuck
DSA16 - Diameter: 16mm x 0.20mm, with AJMini PM Chuck
DSA19 - Diameter: 19mm x 0.20mm, with A2 PM Chuck
DSA22 - Diameter: 22mm x 0.20mm, with A2 PM Chuck
DSA25 - Diameter: 25mm x 0.20mm, with A2 PM Chuck

Comparison between A2 and AJMini Chuck:

A2 PM chuck: Shank diameter = 2.35mm; screw head diameter ≈ 0.5mm
AjMini PM chuck: Shank diameter = 2.35mm; screw head diameter ≈ 0.3mm

Composition : Disc and mandrel with metal shank made of stainless steel (AISI 303).

Maximum Rotation : 10,000 RPM.

Packaging : Acrylic box containing serrated disc with mandrel.

Approximate average dimensions and weights

• Product (disc):
  Weight: 0.3g

• Product (Chuck):
  Dimensions: (4.69 (length) x 0.235 (stem diameter)) cm
  Weight: 2g

• With factory packaging:
  Dimensions: (3.2 x 3.2 x 6.2)cm
  Weight: 16g

ANVISA/MS Registration : Exempt.

Supplier : Dhpro
