Photocuring Light Diamond BS Black - Essence Dental

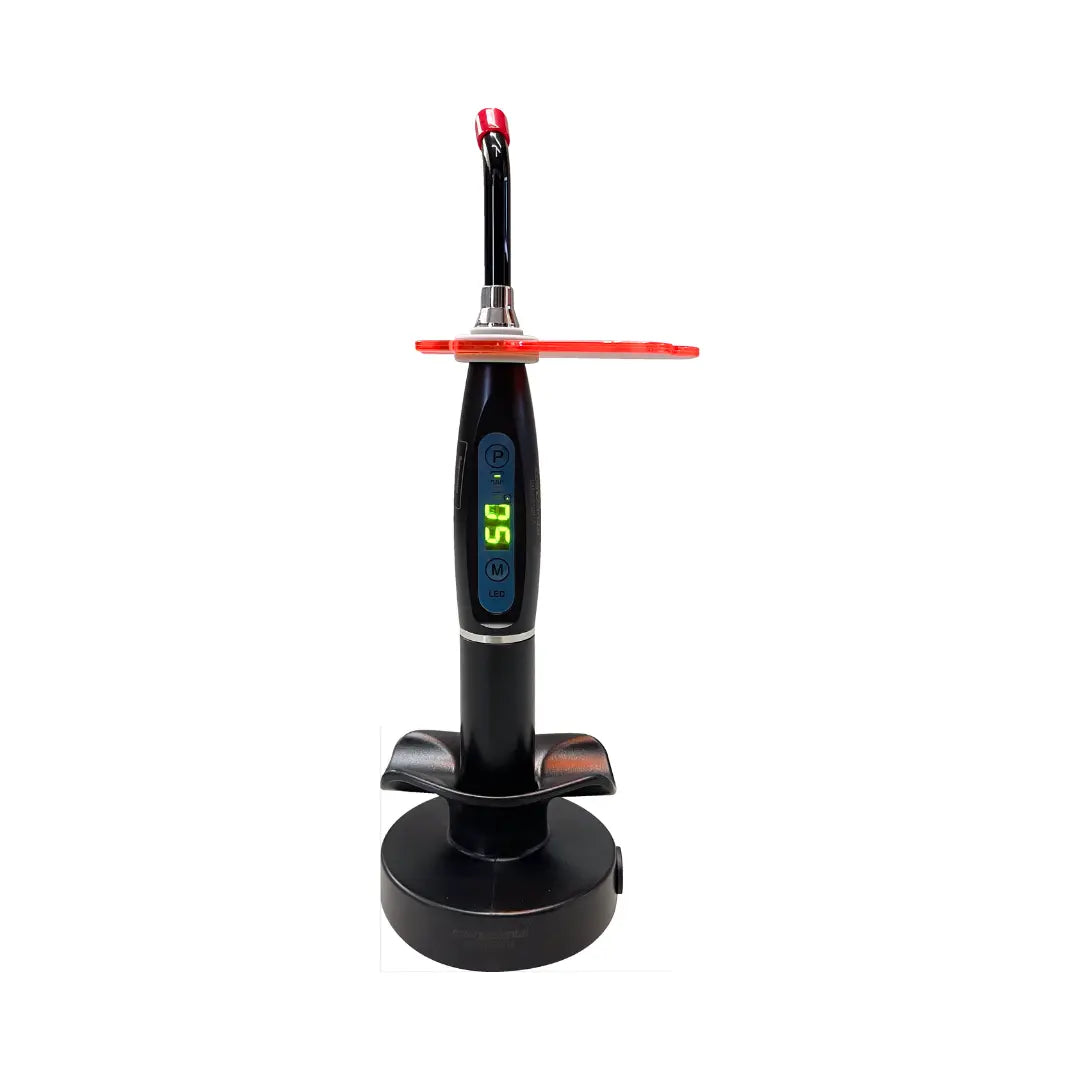

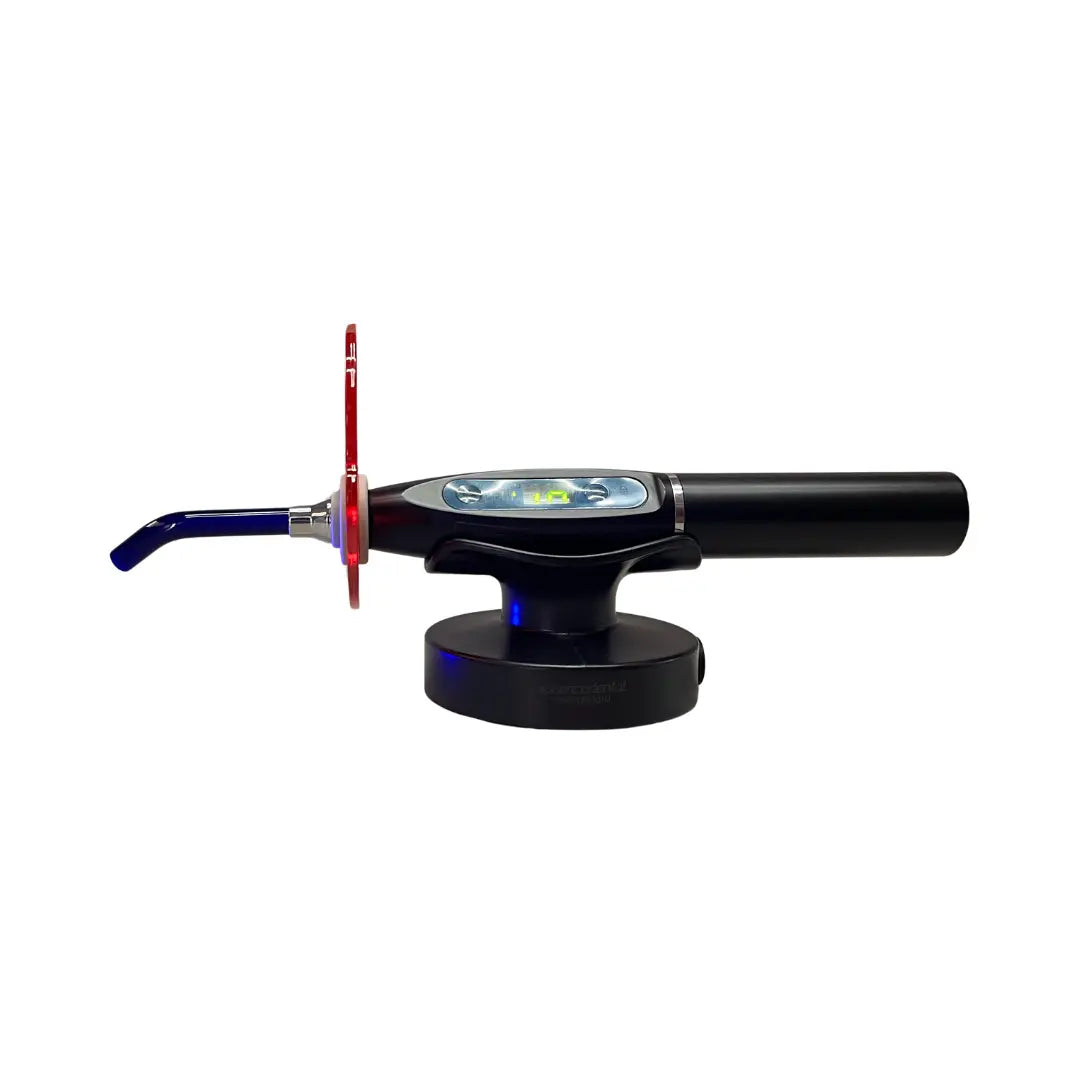

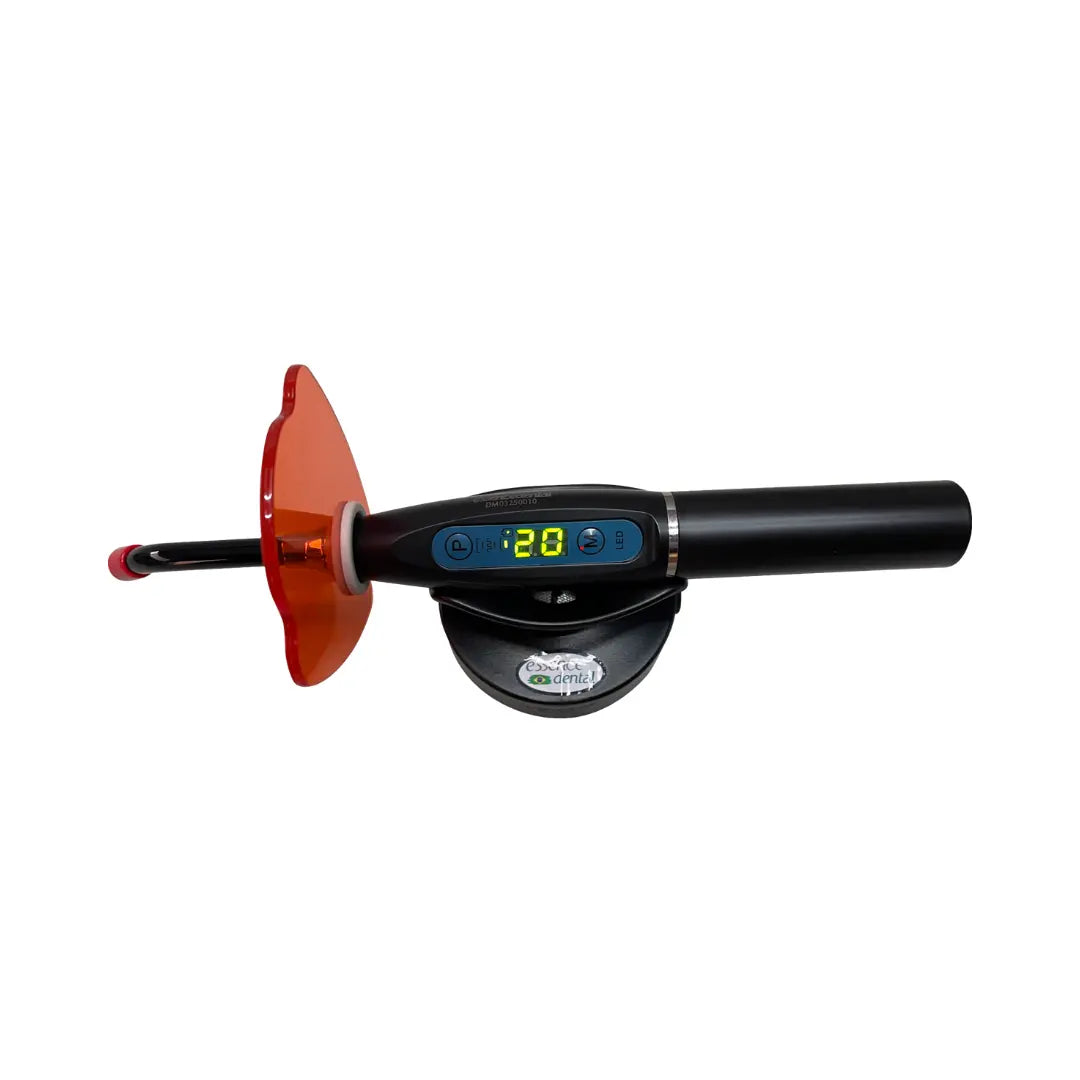

Diamond BS Cordless Curing Light

Code:2961

The BS Diamond Curing Light - Essence Dental is equipment used in dental resin curing procedures, being indispensable for several procedures that involve and reflect the patient's oral health.

Technical Characteristics:

• Maximum luminous output power - ≤ 1500mw/cm²;

• Programmable from 5 to 40 seconds;

• Wavelength - 450 to 500nm;

• Protection against electric shock - Internally Energized Equipment;

• Main unit weight - ~150g;

• Main unit dimensions (applicator) - ~165 x 30mm (cylindrical);

• Charger dock dimensions - ~80mm x 80mm x 60mm;

• Operating Mode Continuous, Pulsed and Ramp Modes (output adjustment definition);

• Normal operating cycle: 40s ON (regardless of MODE setting), in equipment use intervals of 5min;

• Protection level IP Power supply – IP40;

• Handpiece – IP00;

• Charger Dock – IP00;

• Power supply weight - ~0.5Kg;

• Regarding operating environment - Equipment not suitable for use in oxygen-rich environments.

• Note: The equipment has an external power supply and should be treated as part of the equipment, do not use any power supply other than the one provided with the equipment, if in doubt contact your representative.

Advantages:

• The Dental Curing Light has 3 basic operating modes, namely PULSED mode, CONTINUOUS mode and RAMP mode, each having a relationship and characteristics related to different procedures.

• Operating modes are accessed using the button identified with the letter "M", and the application time for each mode can be adjusted, in 5-second steps from 5 to 40s.

• Application starts by pressing the "P" button

• Also, on the front panel there is a time indicator (2-digit display) and a battery charge indicator

• Curing light for resins and teeth whitening

• Acrylic tip for whitening

• Operating Mode Continuous, Pulsed and Ramp Modes (output adjustment definition)

• Automatic bivolt

• Protection against electric shock - Internally Energized Equipment

• Regarding operating environment - Equipment not suitable for use in oxygen-rich environments

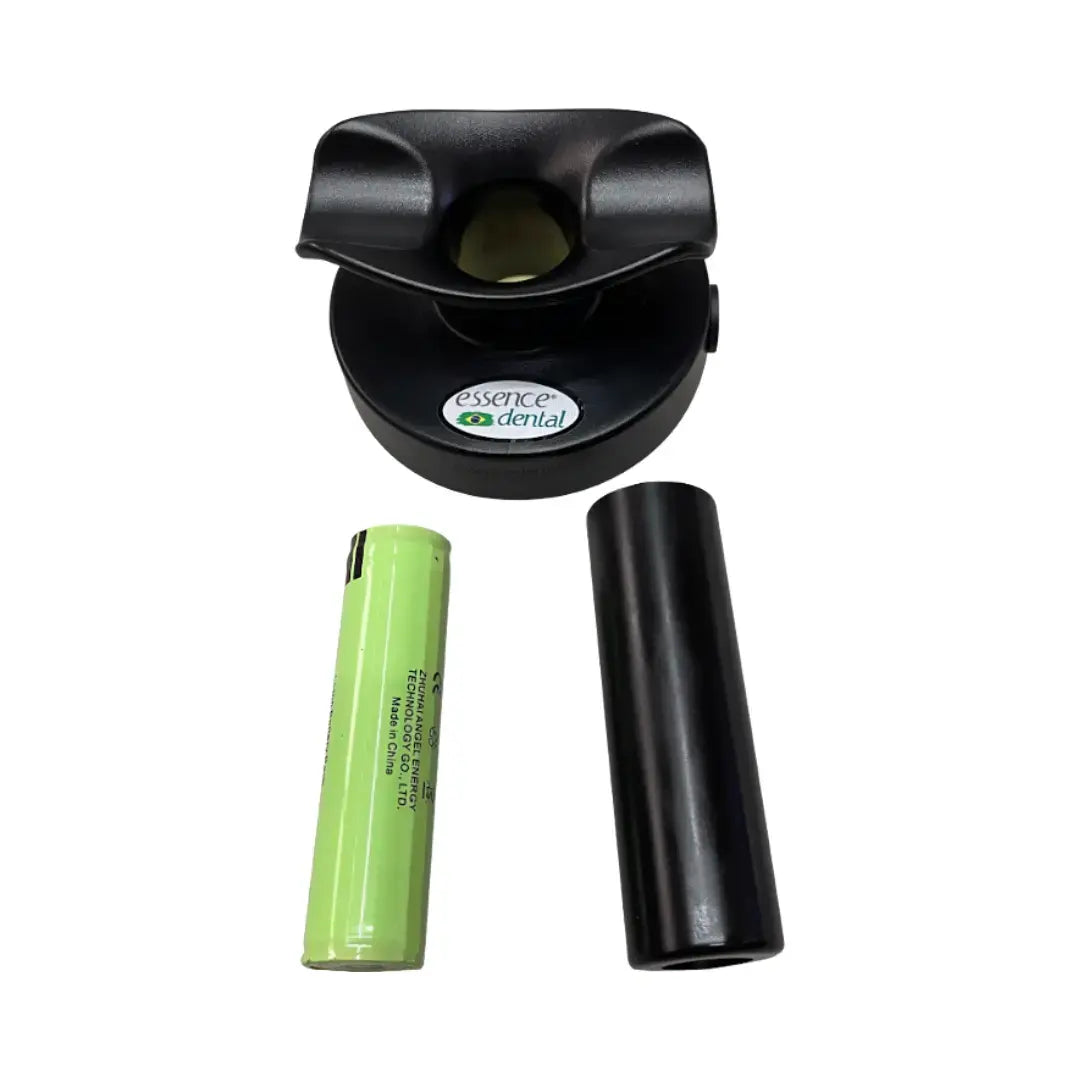

Included Items:

• 1 Curing Light;

• 1 Charger;

• 1 charging base

• 1 Tip

• 1 Instruction manual;

• 1 Acrylic protection;

• 1 Warranty Certificate attached to the Manual.

Approximate dimensions and weights

• With factory packaging:
  Dimensions: ( 12.0 x 6.5 x 27.0)cm
  Weight: 429g

ANVISA/MS Registration: 80676929003

Manufacturer: Essence Dental
