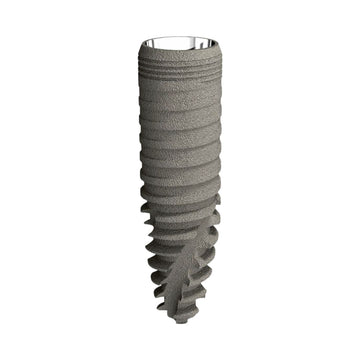

Morse Screw Slim Cone Implant - KOPP

Morse Screw Slim Cone Implant - KOPP

Kopp implants are made of grade IV titanium, a biocompatible, strong, and durable material. They are finished with the Speed Surface treatment, which consists of a microparticle blasting process and double acid etching, resulting in improved implant surface performance and optimized osseointegration in different bone types.
Kopp Dental Implant System implants are designed for placement in both cortical and medullary bone. Their hybrid, slightly conical and cylindrical designs allow for the use of a single implant for any bone density, simplifying the planning and surgical processes in many clinical cases.
CM Screw Polymer Implant Cover (Code: 195.034) included in the cartridge cap. The cover serves to close and protect the Morse taper implant entrance during the osseointegration phase.
It is necessary to use the implant cover remover.
Morse taper 11.5º (internal angulation).
- Biological chamfer;
- Modified micro threads;
- Double trapezoidal thread;
- Conical body with Morse cone connection;
- Apical helix;
- Active tip;
Material : Titanium grade IV of American origin, presents certified raw material
Bone drilling in cortical bone :
2.0 2.8
ø3.0 v v
Modular type bone drilling :
2.0
ø3.0 v
Recommendations :
- Install 2 mm sub-osseous;
- Internal torque;
- Do not exceed installation torque above 60 N.cm;
- Do not exceed installation rotation above 30 RPM.
Packaging : Box with one sterile implant with polymer implant cap.
Compatibility : with the main brands on the market.
ANVISA/MS Registration : 80204110010
Manufacturer : KOPP
