Code : 150.022

Main features :

• The only guided surgery kit on the market, internationally, that uses 4 offsets, of 07, 09, 11 and 13 mm for different clinical situations;
• Short drills that allow access to small mouth opening spaces;
• Color coding on Drill Bit Guides and Stop drills;
• Laser-marked lengths on Drill Guides and Drilling Pilot Bits;
• Floating stop drill and floating assemblers with four offset markings (07, 09, 11 and 13 mm);
• Long assembler without stop and floating on the ratchet wrench;
• Short assembler for small spaces;
• Pilot to eliminate interference in inclined bone plane;
• Drill Extender (Extension) which can be used in clinical cases with interference from the contra-angle head;
• The first keyless guided surgery kit on the Brazilian market.

Planning at Different Offsets:

The position of the washer in the surgical guide can be planned at different offset heights. The washer can be positioned at an offset of 7 mm, 9 mm, 11 mm, and 13 mm. These offset variations are determined during planning according to the mucosal thickness.

• Offset is the distance between the Implant platform and the upper margin of the Ring;
• Offset is a compensation of the Drill in guided surgery;
• It is the zero point that begins counting the length of the implant.

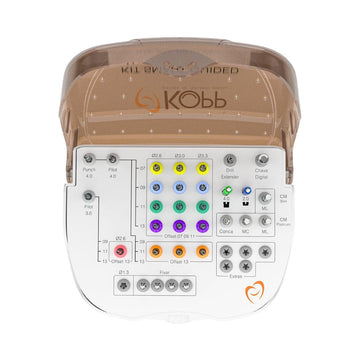

Composition of the case :

Pilot Drills - Pilots are drills used to start drilling and regularize irregular bone ridges.

• Pilot Drill Ø 3.0 mm
• Pilot Drill Ø 4.0 mm

Drill Sequence and Measurements - The drills are available in lengths of 07, 09, 11 and 13 mm.

Smart Guided Drills - Offset 07, 09, 11

• Drill bit Ø 2.8x7 mm
• Drill bit Ø 3.0x7 mm
• Drill bit Ø 3.3x7 mm
• Drill bit Ø 2.8x9 mm
• Drill bit Ø 3.0x9 mm
• Drill bit Ø 3.3x9 mm
• Drill bit Ø 2.8x11 mm
• Drill bit Ø 3.0x11 mm
• Drill bit Ø 3.3x11 mm
• Drill bit Ø 2.8x13 mm
• Drill bit Ø 3.0x13 mm
• Drill bit Ø 3.3x13 mm

Smart Guided Drills - Offset 13

• Drill bit Ø 2.6x09|11|13 mm
• Drill bit Ø 2.8x09|11|13 mm
• Drill bit Ø 3.0x09|11|13 mm
• Drill bit Ø 3.3x09|11|13 mm

Stop Drill Smart Guided

• Stop Drill 2.0 mm
• Stop Drill 4.0 mm

Instrumentals

• Stop Drill Ruler
• CM Screw Platinum Contra Angle Connection (Conca CM)
• CM Screw Platinum Short Implant Mount
• CM Screw Platinum Long Implant Mount
• CM Screw Slim Implant Mount
• Fixer (4 units)
• Drill bit Ø 1.3 mm
• Digital Key 1.2 short
• Punch
• Drill Extender
• Ratchet Torque Wrench ( 20N.cm | 32 N.cm | 45 N.cm | 60N.cm )

Differentials :

• Guided Surgery
  The implant installation is done with virtual planning using guides.
• Ease of Use
  The smallest drills and instruments that allow access to posterior regions, only the Smart Guided Kit has!
  Ensure safety and predictability for you and your patients.
• No Pain or Bleeding
  Only with the Smart Guided Kit is it possible to provide your patient with this comfort when installing implants.
  Specially developed to facilitate understanding from the planning of the Smart Guided digital flow to the handling of instruments when installing guided dental implants.

ANVISA/MS Registration : 80204110026

Manufacturer : KOPP
