Panoramic Facial Respiratory Mask for 2 Filters CA 36729

Code: 700.30059

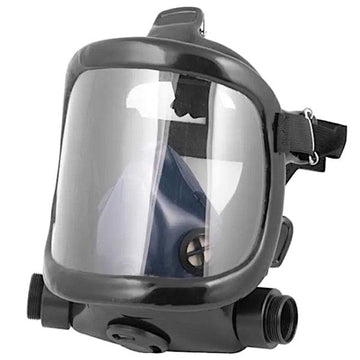

A maintenance-free respirator designed for air purification, consisting of a full facepiece made of non-toxic thermoplastic and two connectors for attaching the filter elements. The visor is made of transparent polycarbonate with a wide field of view, protected by a transparent, disposable self-adhesive film. This respirator can be used with chemical, combined, and mechanical filters.

Recommendations:
The panoramic mask should only be used in places where the ambient air contains at least 19.5% oxygen and the concentrations of each contaminant are not higher than those indicated on each type of filter.

Performance:
This mask complies with ABNT NBR 13694 standard.

CA Description:
Protection of the user's respiratory tract against the inhalation of solid particles when used with mechanical or combined filters and against gases and vapors when used with chemical and combined filters.

Safety air-purifying respirator, full facepiece type, one size, made of black elastomer.
It has a display made of transparent material, fixed with glue in a specific slot on the front of the
same. In the lower center part of the piece, there is an opening, used to fit a device made
in rigid black plastic material, equipped, internally, in its front part, with an exhalation valve and a
cap of the same color, with a pressure-type fit, marked. On the back of this device, the mask fits,
made of blue elastomer. The mask has two inhalation valves, located respectively in
each of its sides. The body of the piece has two openings located on its lower sides, one in
each side, used to fit two supports made of black rigid plastic material, equipped, on the front,
of a threaded fitting, to fix the chemical and combined filters or the fixing base for using the filters
mechanical. An inhalation valve is attached to the back of each support. The part has a
elastic strap with five fixing points, equipped in its central part, with a leather support to support the
head and attached to the edge of the same by means of metal clips, fixed through plastic material handles,
glued to the part. To use mechanical filters, a filter holder is used, equipped with a base made of material
black plastic with a screw-type fitting on the back and a translucent plastic cover, which is fitted to this
base to attach the filter. The model is indicated for protecting the user's respiratory tract against the inhalation of
solid particles, when used with mechanical or combined filters and against gases and vapors, when used
with chemical or combined filters: 1-Chemical Filters class 1: 7500. 1-Organic vapors; 7500.2-Acid gases;
7500.3-Organic vapors and acid gases; 7500.4-Ammonia and methylamine. 2-Mechanical Filters: 7500.6-for dust and
mists (P1); 7500.25-for dusts, mists and fumes (P2). 3-Combined Filters: (chemical class 1 and mechanical class
P2): 7500.49-Filter for protection against organic vapors (agricultural pesticides) and dust, mists and fumes (P2).

Product size:
19cm wide x 22cm high x 12cm long.

Package contents: 1 panoramic respirator

Certificates: Certificate of Approval Number - CA 36729

Number of cartridges adaptable to the respirator: 2 cartridges

Manufacturer: Plastcor
